Unbranded

TTL Prism finder Waist-level finder Kiev-88 Kiev-60 Kiev-6C Pentacon Six TL

$80.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

variations Kiev-88 prism finder Spot TTL prism finder NT Kiev-60/6C prism finder Kiev-88 waist-level finder Kiev-88 new style waist-level finder Adapter Kiev-60 to Pentacon Six

Quantity

TTL Prism finder, Waist-level finder for
Kiev-88 Kiev-60 Kiev-6C Pentacon Six TL

ARAX Hartblei Hasselblad

Variants 1, 2, 4 and 5 also fit for the following cameras (certain models):

HASSELBLAD ARAX KIEV-88 KIEV-88CM KIEV-80 KIEV-688 KIEV-SIX Zenith-80 Salyut Salut-C Hartblei B.I.G-SIX Kiev-USA.

Variant 3 also fits Pentacon Six TL cameras with adapter(variant 5).

Variants:

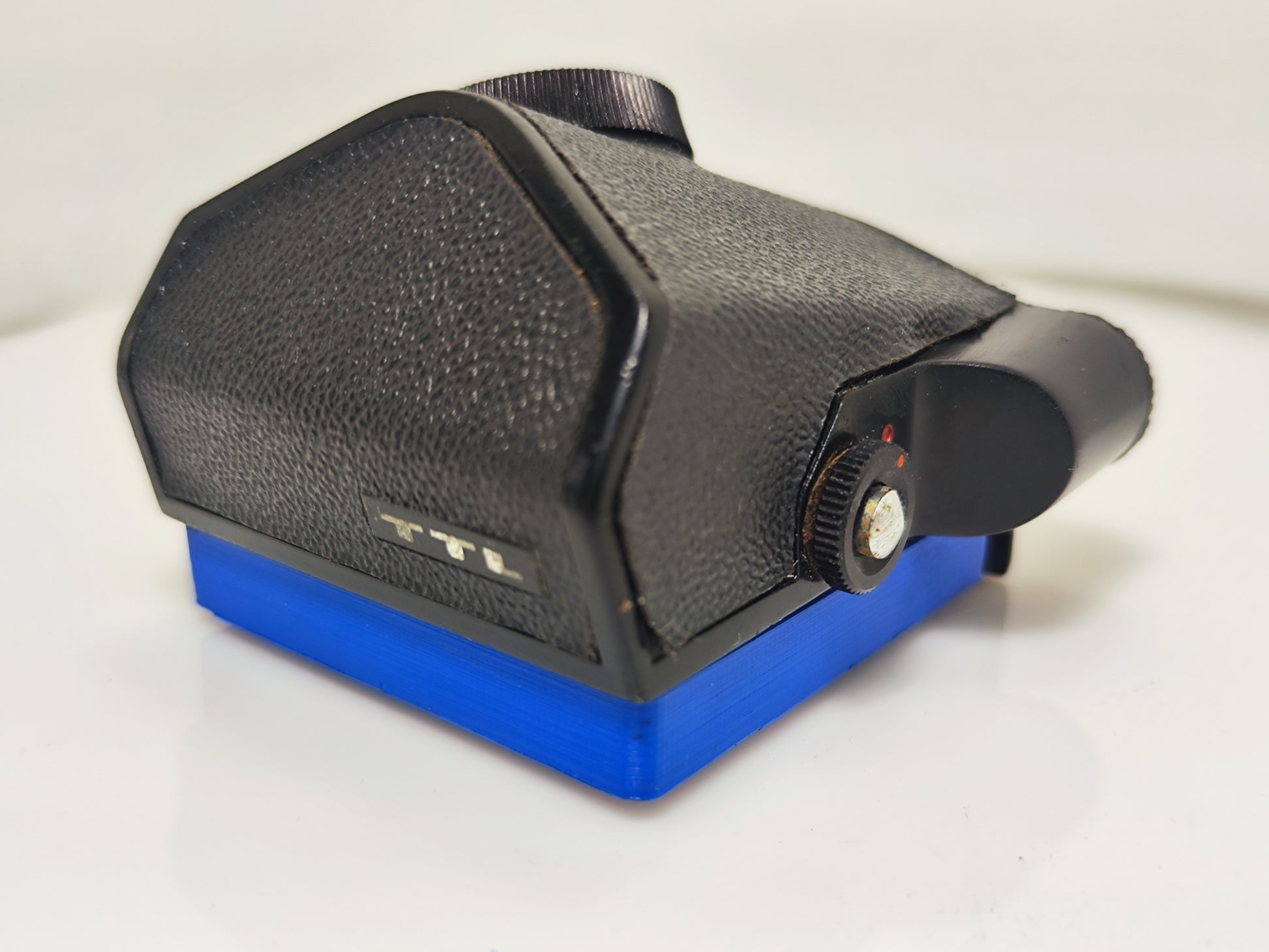

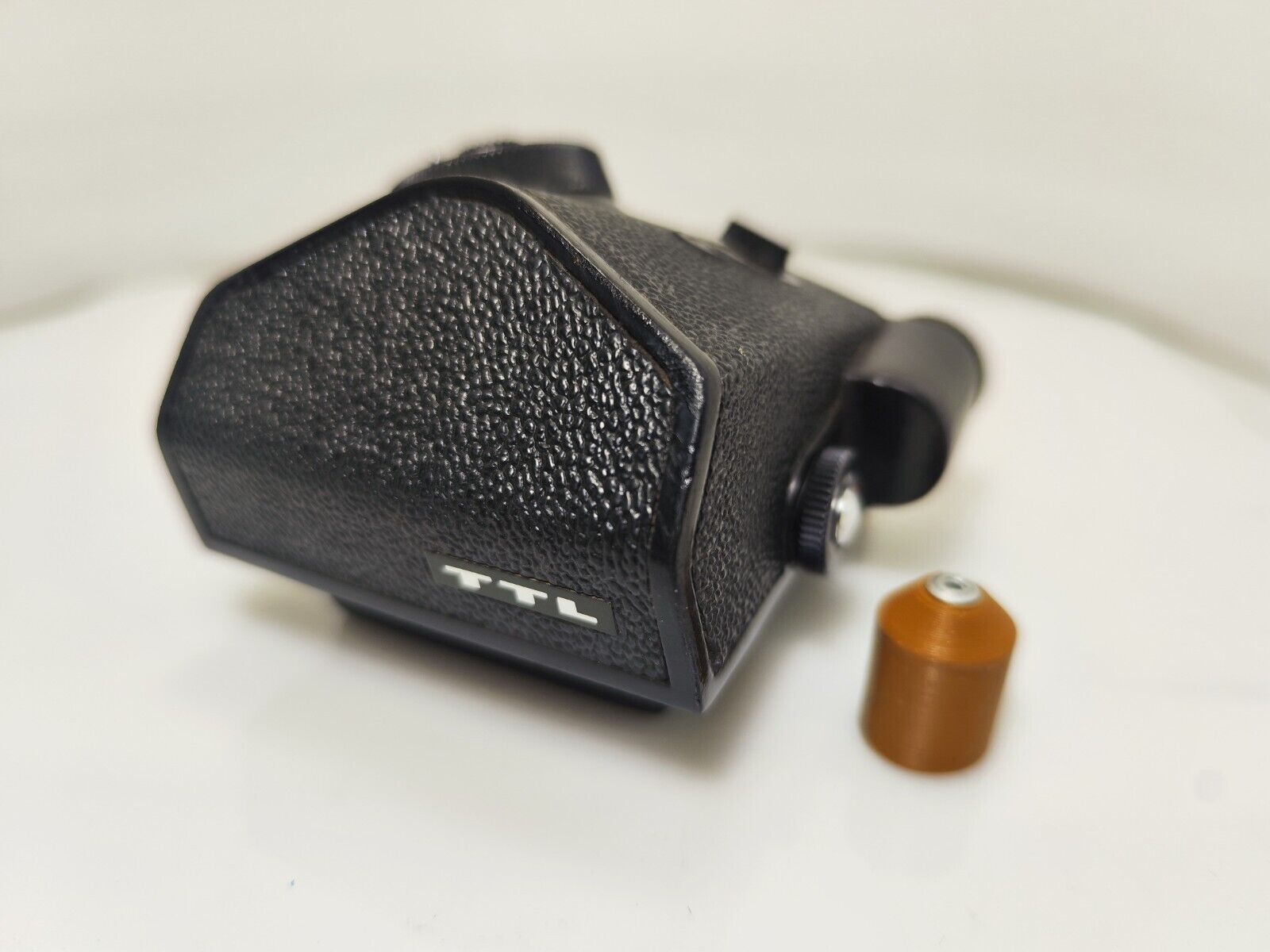

Kiev-88 TTL prism finder + battery adapter as gift.

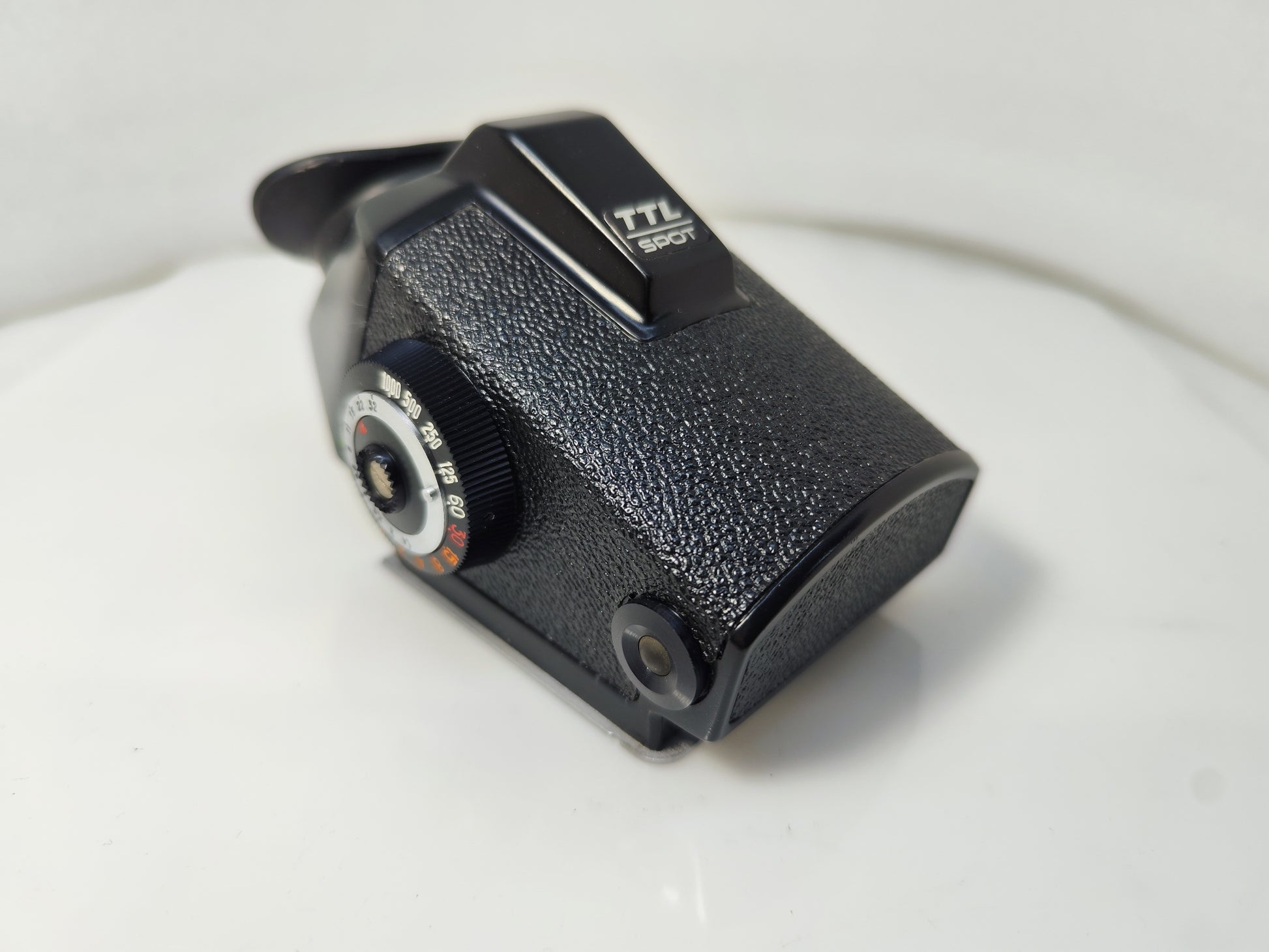

Kiev-88 Spot TTL prism finder. NT New Type. 3x optical magnification.
Kiev-60 and Kiev-6C TTL prism finder + battery adapter as gift

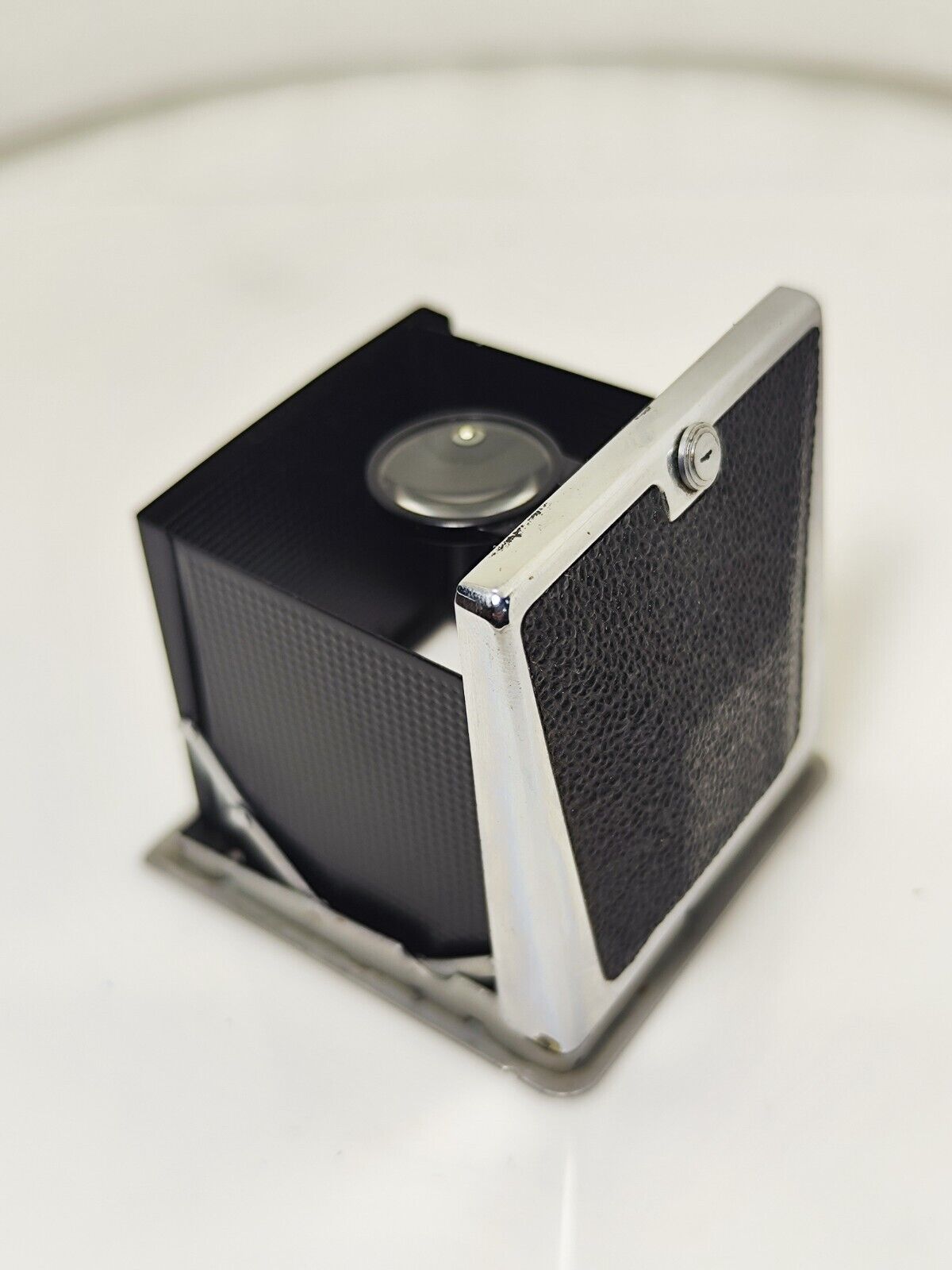

Kiev-88 waist level finder old style. 3x optical magnification.

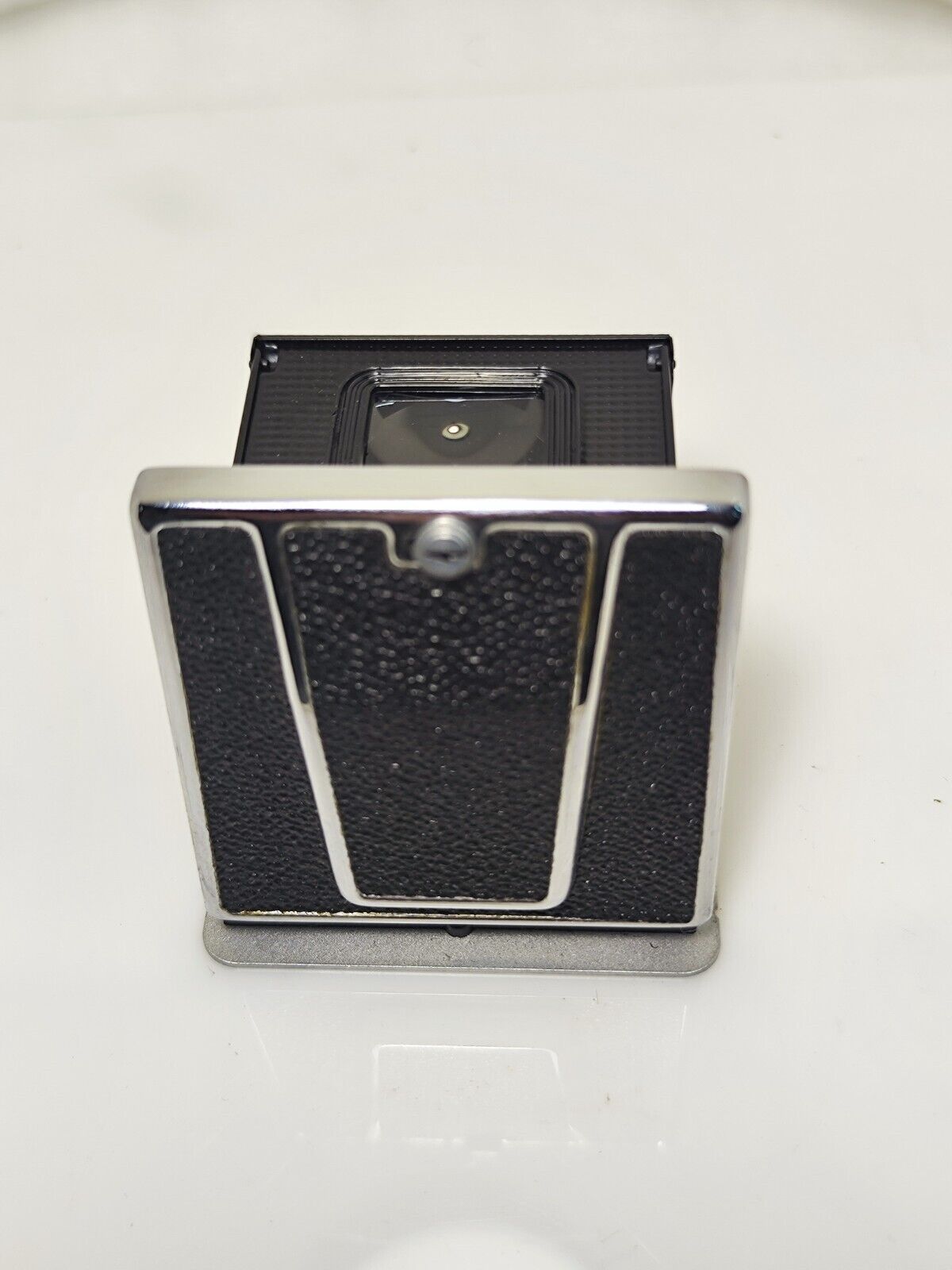

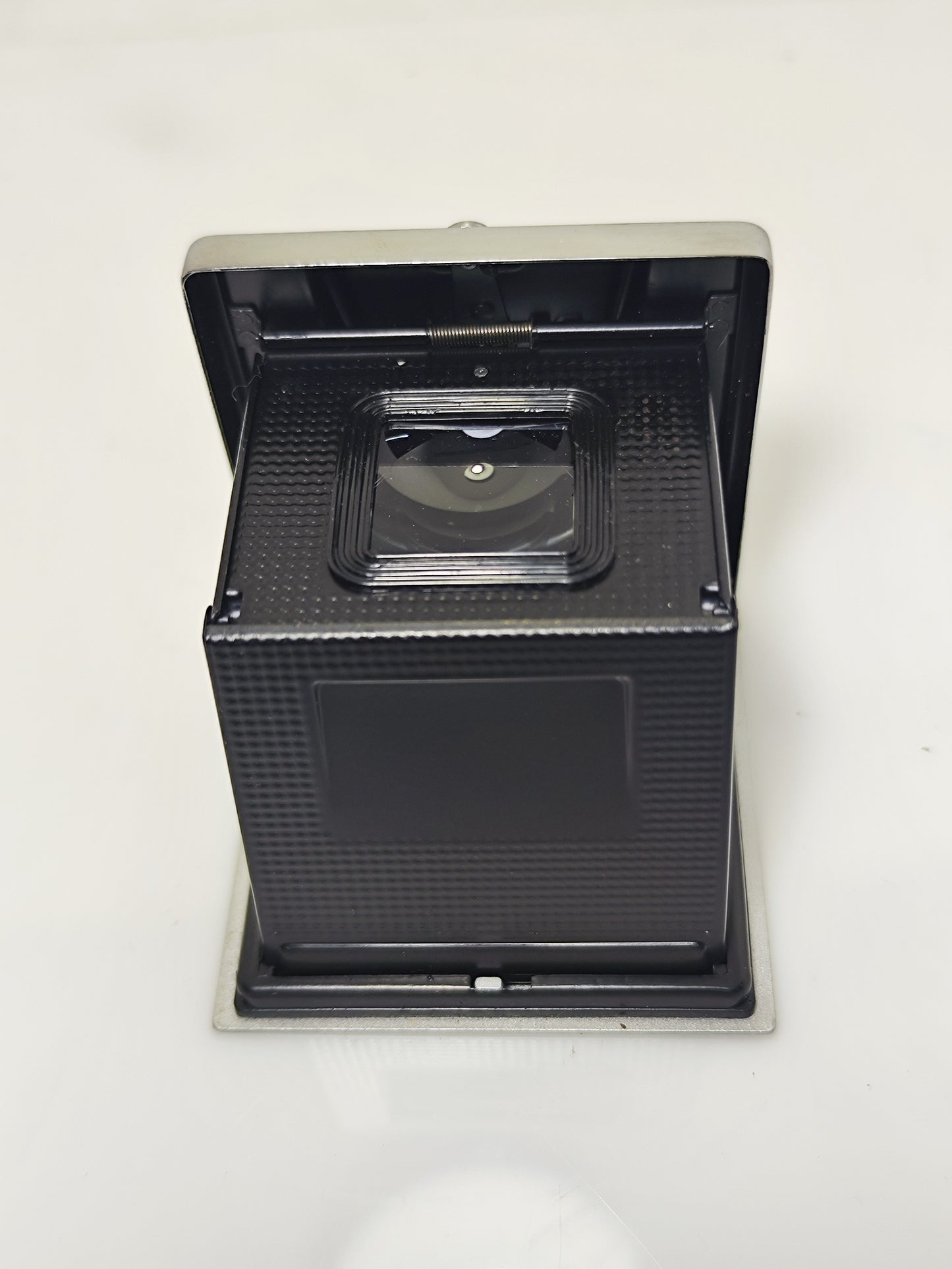

Kiev-88 waist level finder NT new type. Hasselblad-style. 3x optical magnification.

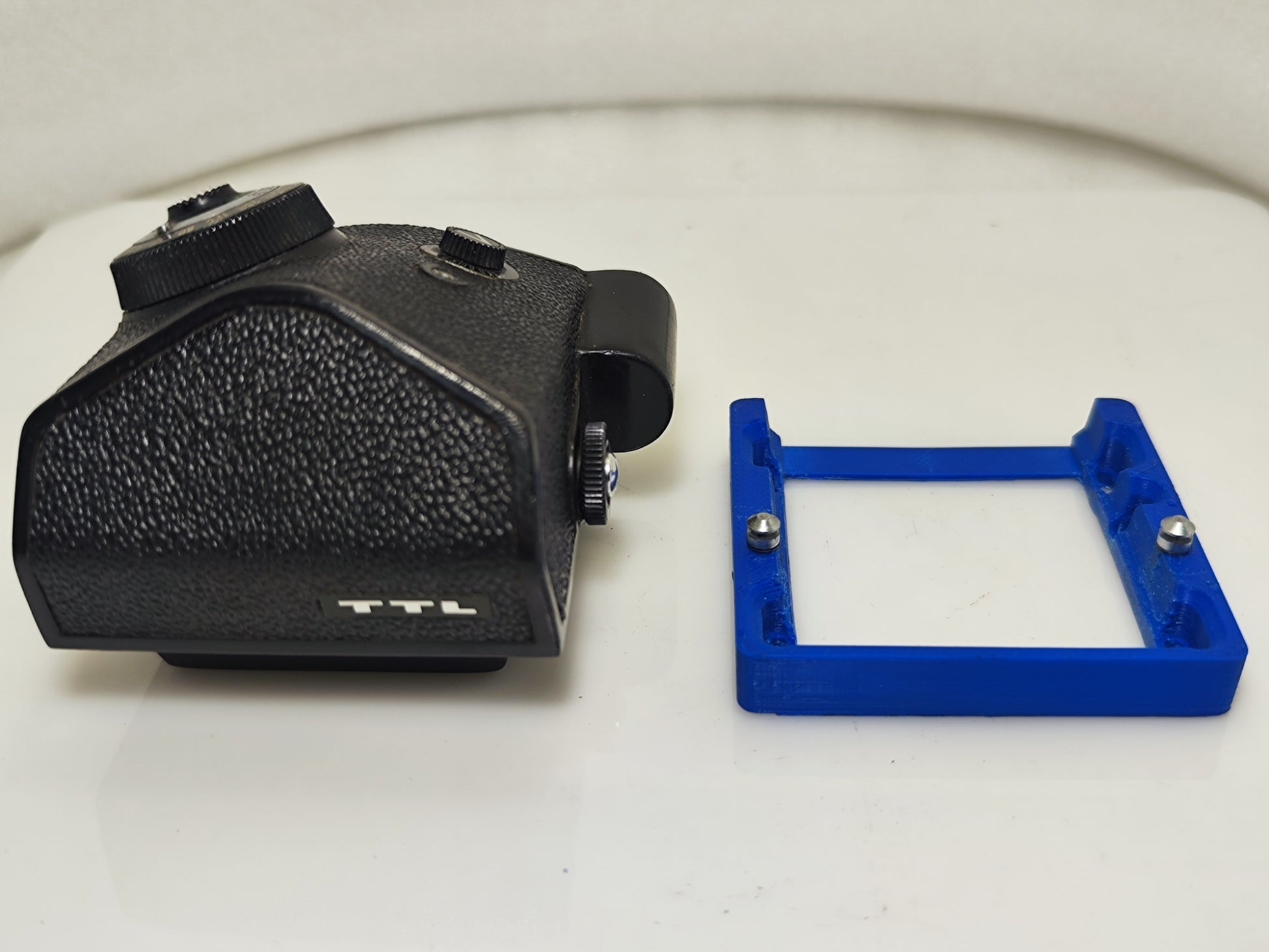

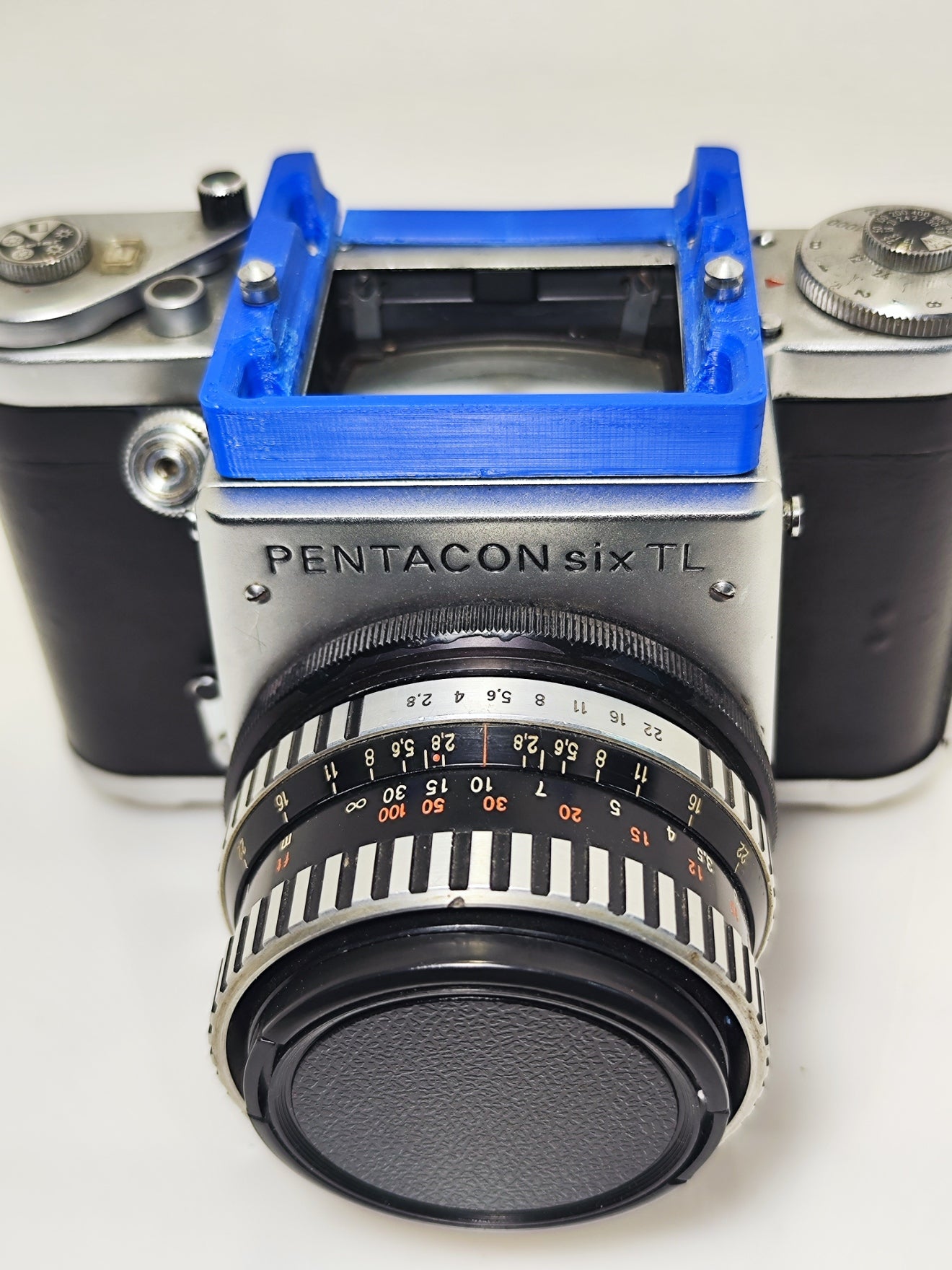

Adapter for use Kiev-60/6C prism finder on Pentacon Six TL camera.

INFO:

The Kiev-60 and Kiev-6C TTL metered prism viewfinder was produced at the ARSENAL factory between 1977 and 1988. It features a 3-position switch with settings for On, Off, and Battery Check, along with a GOST/DIN sensitivity scale. The viewfinder also includes a battery control light indicator. The power system can be adapted to use modern LR44 batteries.

The primary purpose of the prism was not its metering function. Given the use of outdated electronic components manufactured in the USSR, the accuracy of the TTL metering cannot be guaranteed. We recommend using a modern external light meter for more reliable results.

Metering type: Integral

Magnification: 3X

Field of vision: 53X53 mm.

DIN exposure ranges: 10, 13, 16, 19, 22, 25, 28, 31

GOST exposure ranges: 6, 12, 25, 8, 16, 32, 65, 130, 250, 500

Shutter speed ranges: 8, 4, 2, 1, 1/2, 1/4, 1/18, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000

Aperture ranges: 1.4, 2, 2.8, 4, 5.6, 8, 11, 16, 22, 32

Power: 3x LR44 type battery in adapter

Supply Voltage: 4-6 V

Overall dimensions: 88x62x97mm

----------------------------------------------

Highest quality TTL/SPOT electronically-metered prism viewfinder. This is a last and more accurate metering version made in ARSENAL factory (Kiev, Ukraine). Has two type of metering - spot and center-weighted. No switch as on old version, has only one button to change from spot to center-weighted metering. A reflected light meter capable of taking precise reading of very small areas of subject or scene. Looks perfectly and fits Hasselblad, ARAX, KIEV-88, SALYUT cameras.

Specification:

Integral Metering: Yes

Spot Metering: Yes

Field of vision: 53X53 mm.

Magnification: 3X

ISO exposure ranges: 6, 12, 25, 50, 100, 200, 400, 800, 1600, 3200

Shutter speed ranges: 8, 4, 2, 1, 1/2, 1/4, 1/18, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000

Aperture ranges: 1.4, 2, 2.8, 4, 5.6, 8, 11, 16, 22, 32

Power: 3x LR44 type battery

Supply Voltage: 4.5

Overall dimensions: 76x79x126mm

Weight: 1lb or 0.46kg

Manufacturer: Arsenal factory

-----------------------------------------

Disclaimer:

The primary purpose of the prism finder was not its metering function. Given the use of outdated electronic components manufactured in the USSR, the accuracy of the TTL metering cannot be guaranteed. We recommend using a modern external light meter for more reliable results.
